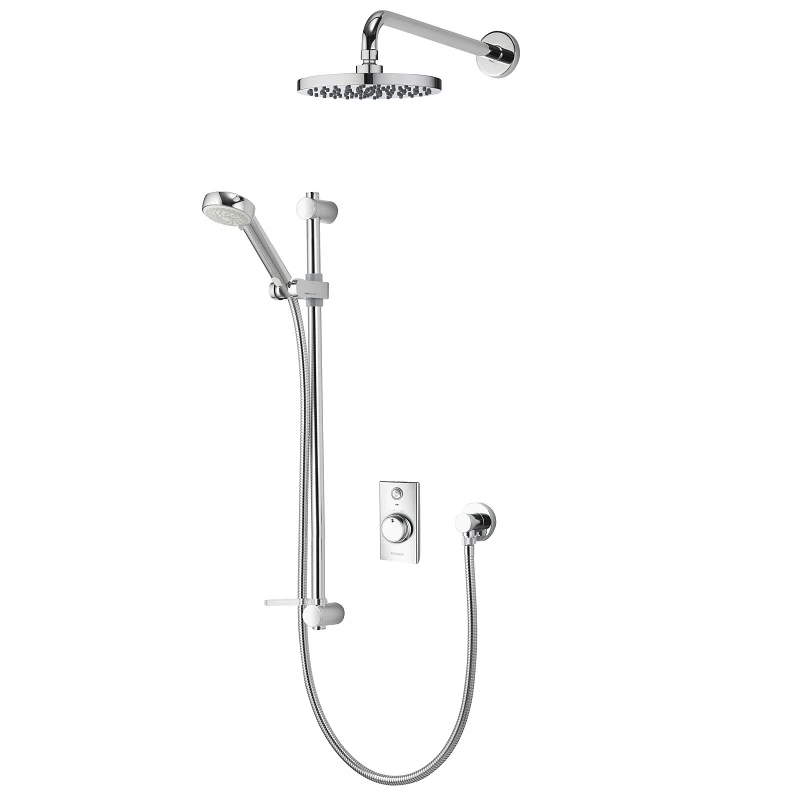

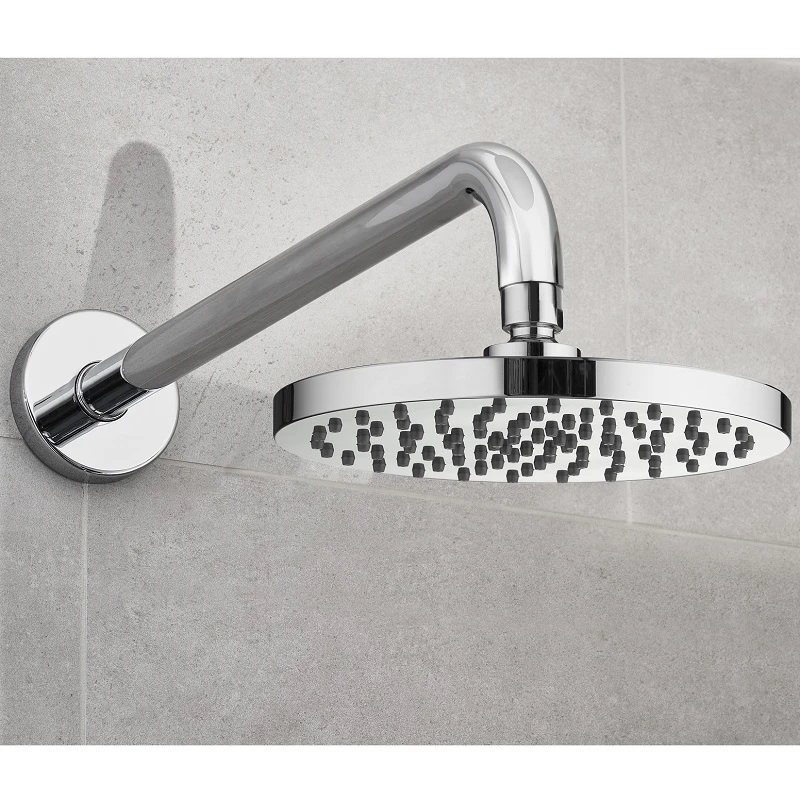

Aqualisa Visage Q Digital Smart Shower Concealed Dual With Wall Head – Gravity Pumped

Aqualisa Visage Q Digital Smart Shower Concealed Dual with Wall Head – Gravity Pumped (VSQ.A2.BV.DVFW.20).

Combining contemporary styling with a family-safe design, Visage Q Smart Digital Shower is the perfect choice for the whole family.

This smart digital shower provides precise temperature control with an ergonomic panel to give you the sensational shower you have been looking for. The one touch controls make for an easy to use Smart Digital Shower and the flashing to steady LED indicator will show you when it’s time to step in to bliss.

Control Visage Q through a variety of convenient ways – Visage Q Smart Digital Showers are compatible with the Aqualisa App, can be linked to smart home devices or through the use of a wired remote.

Controlled easily through the Aqualisa App, which includes access to a water consumption dashboard. Safe family showering using thermostatic shower controls – set a maximum water temperature during installation for enhanced safety benefits. Eco functionality saves up to 33% on water consumption. 5 years parts and labour guarantee when registered with Aqualisa.

• Minimum pressure requirements – Aqualisa SmartValve™ must be sited no higher than the base level of the cold water cistern
• Maximum pressure requirements – 1 bar (Gravity)
• Aqualisa SmartValve™ inlet fitting connections – 15mm push fit fittings, valve inlet centres 48mm, inlet supply positions – hot right, cold left
• Aqualisa SmartValve™ and diverter outlet connections – 15mm push fit
• Permissible Aqualisa SmartValve™ and diverter siting locations – Loft, airing cupboard, under bath
• Supply temperature – Cold inlet temperature 1˚C (minimum) – Cold inlet temperature 15˚C (maximum) – Hot inlet temperature 65˚C (maximum)
• Water system – Gravity
• Blended outlet temperature settings – Factory mid set blend temperature 45˚C, adjustable temperature setting – minimum 35˚C, maximum 55˚C
• Electrical requirements – SmartValve™ to mains Switched fused spur 3amp, processor main cable length 2m, required voltage 230 – 240V
• Electrical requirements – Controller to SmartValve™ Low voltage data cable length 10m
• Electrical requirements – Diverter to SmartValve™ Low voltage data cable length 2m – Data cable voltage 5V

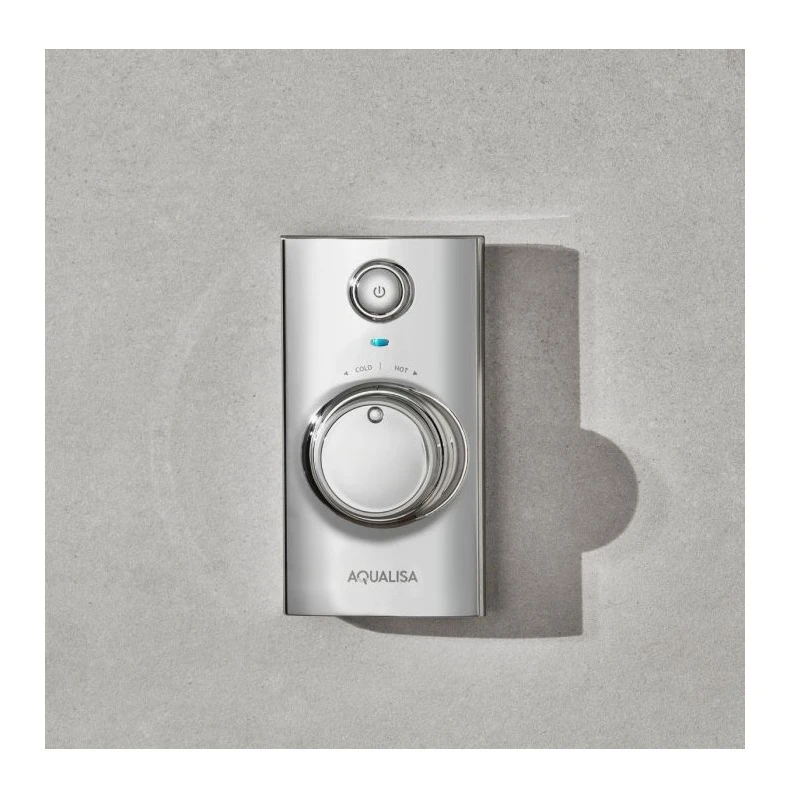

• One touch start/stop control
• LED display indicates when pre-selected temperature has been reached
• Wi-Fi & App compatible – control your product with your smart phone and smart home device e.g. Alexa
• App functions include start/stop, shower timer, user dashboard, usage tracker and help & support
• Aqualisa SmartValveTM
• Digital diverter technology

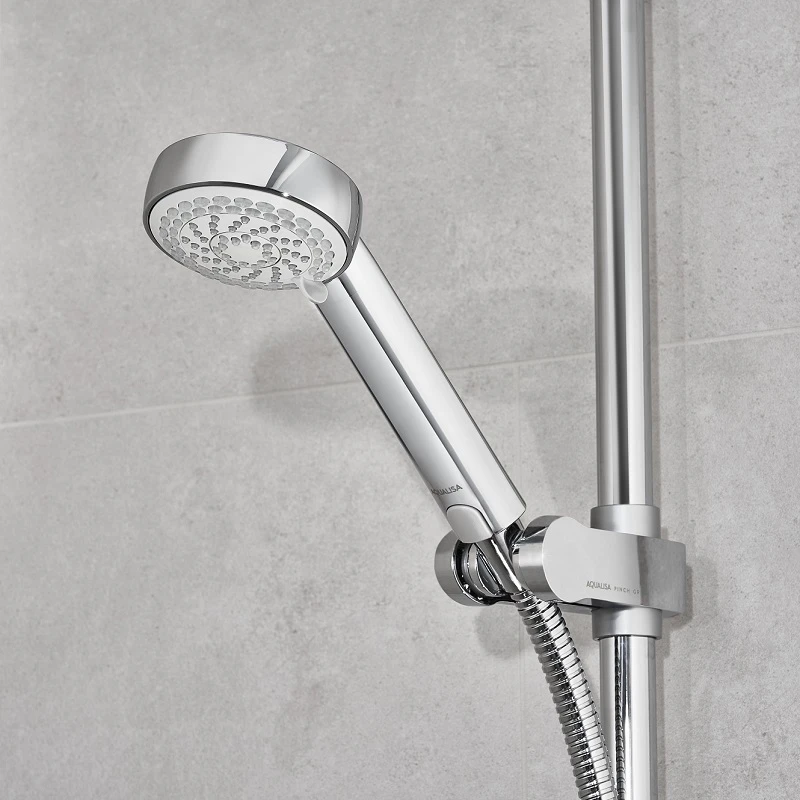

• 90mm, 4 spray patterns, including an eco-setting
• Compatible with wired remote control
• Guarantee period – 5-year guarantee – shower unit – 2-year guarantee – shower head and kit
• Approvals – CE Marking – BEAB

This product is part of a range – you can see the full selection of Aqualisa Visage Q Digital Smart Showers here.

The Aqualisa Visage Q Digital Smart Shower Concealed Dual with Wall Head – Gravity Pumped (VSQ.A2.BV.DVFW.20) is a genuine, brand new Aqualisa product, covered by a Aqualisa manufacturer’s guarantee.

Not what you’re looking for? See all Aqualisa Digital Showers.

For advice on this or any product, please call 01452 619836, email us at [email protected], or see our contact page.

• Brand Aqualisa
• Name Aqualisa Visage Q Digital Smart Shower Concealed Dual with Wall Head – Gravity Pumped (VSQ.A2.BV.DVFW.20)
• SKU / MPN Aqualisa VSQ.A2.BV.DVFW.20
• GTIN / EAN 5023942268135
• Categories Aqualisa Digital Showers
  Digital Showers
• Range Aqualisa Visage Q Digital Smart Showers
• Fitment Rear Fed
• Outlets Dual
• Pressure Low Pressure
• Condition Brand New
• Returns 30 day money-back guarantee
• Manufacturer Guarantee Yes
• PDF Guide Download (0.48 MB)
